    Altronic 6401 Series
    Altronic 6401 Series - Image 2

    Altronic 6401 Series

    6401 Series Air Cooled Coaxial Loads

    These air dielectric coaxial loads deliver the same high performance of the 6700 Series in a smaller package.

    Original price was: $ 2,016.03.Current price is: $ 1,915.82.

    SKU: 105019 Brand: Altronic Research
    Download PDF Brochure
    6401N - 1kW - N-Female
    Original price was: $ 2,016.03.Current price is: $ 1,915.82.
    6401E7/16 - 1kW - 7/16"
    Original price was: $ 2,304.88.Current price is: $ 2,198.77.
    6401E7/8 - 1kW - 7/8 EIA Flange
    Original price was: $ 2,310.78.Current price is: $ 2,234.14.
    6401E1 - 1kW - 1-5/8 EIA Flange
    Original price was: $ 2,198.77.Current price is: $ 2,092.67.
    6401F1 - 1kW - 1-5/8 Unflanged/Flush
    Original price was: $ 2,163.40.Current price is: $ 2,057.30.
    6401R1 - 1kW - 1-5/8 Unflanged/Recessed
    Original price was: $ 2,163.40.Current price is: $ 2,057.30.

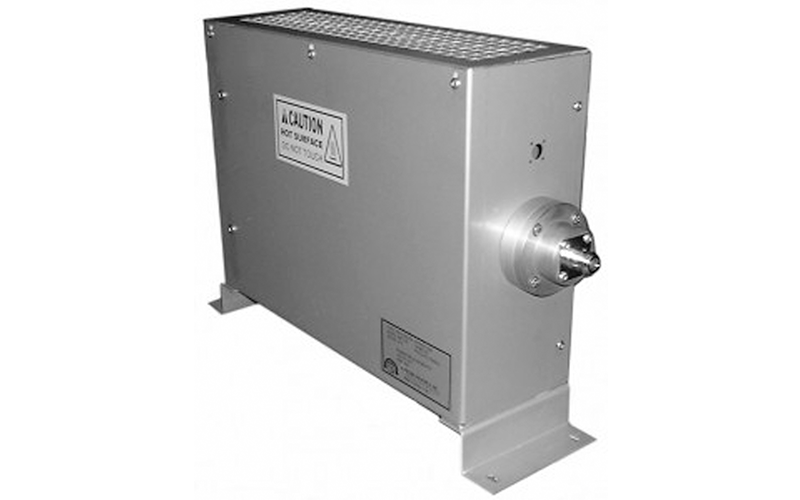

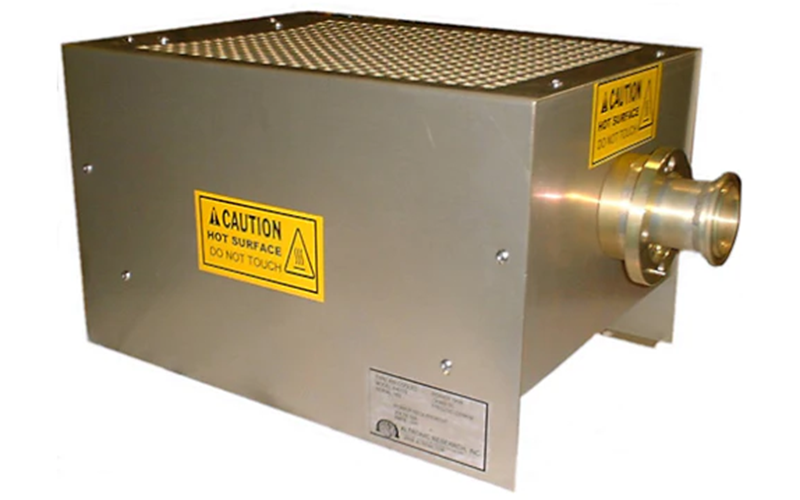

    Altronic 6401 Series Omega-line Air Cooled Coaxial Loads

    Discover the new generation of air dielectric coaxial loads from Altronic Research. This compact and oil-free design offers a welcomed advantage in a busy transmitter area. Applications vary from mounting atop the transmitter to cabinet placement. Proudly manufactured in the USA!

    Specifications:

    • Power Rating: 1kW continuous duty
    • Impedance: 50 ohms nominal
    • Frequency Range: DC to 240 MHz
    • Maximum VSWR: 1.15:1
    • Input Connectors: N–Female, 7/16″ DIN, 7/8″, 1 5/8″ EIA (others available)
    • Nominal Dimensions (Excluding Conn.): 10.5″ x 9″ x 17.5″
    • Nominal Weight: 8 lbs.

    Benefit from a 1-Year Manufacturer Warranty!
