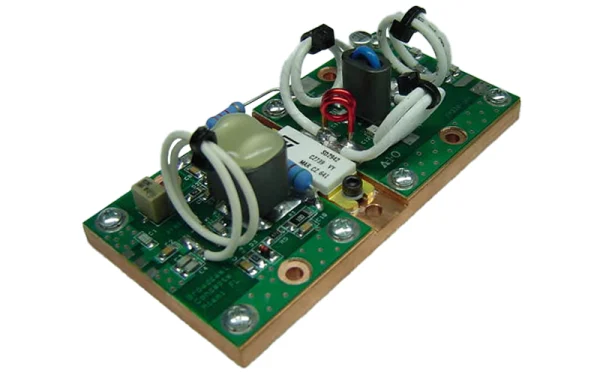

Broadcast Concepts FM350SD – 350W FM RF amplifier module with integrated heatsink
Broadcast Concepts FM350SD $ 451.82
Back to products

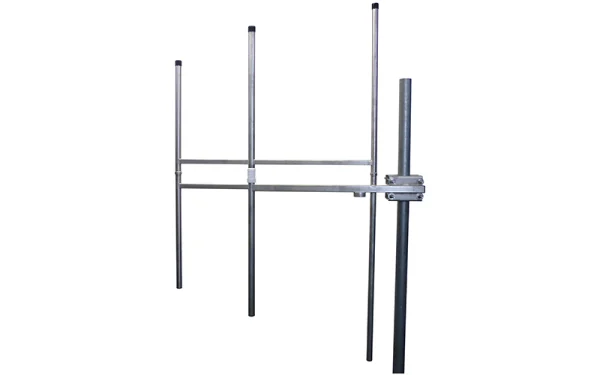

The Label Italy AKY/3N is a professional-grade 3-element Yagi antenna designed specifically for FM broadcasting applications.
Label Italy AKY/3N Original price was: $ 451.82.Current price is: $ 428.35.
-9%
Broadcast Concepts P155FM17 - Image 1
Click to enlarge

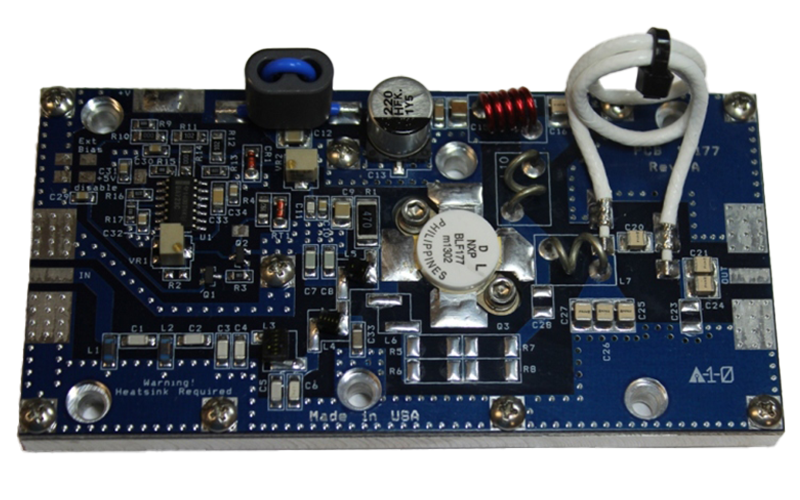

    Broadcast Concepts P155FM17

    BLF177 150W FM PA Module

    Designed for FM radio transmitters, this Broadcast Concepts amplifier incorporates broadband matching and a BLF177 MOSFET transistor.

    Original price was: $ 264.05.Current price is: $ 240.58.

    SKU: 100839 Brand: Broadcast Concepts
    Download PDF Brochure

    Optimize FM Transmission with Broadcast Concepts P155FM17 – 150W FM Power Amplifier Module

    Maximize the effectiveness of your FM radio transmitter system using the P155FM17 Power Amplifier Module by Broadcast Concepts. Tailored as a pivotal component for FM broadcasting, this module effortlessly integrates into your system.

    Key Component Features:

    • Model: P155FM17
    • Transistor: Original NXP/Ampleon BLF177 MOSFET
    • Frequency Range: 86 – 110MHz
    • Dimensions: 2.25 x 4.50 inches
    • Impedance: 50 ohms
    • Power Output (Pout): 150W minimum; 165W typical
    • Gain: 17dB at 150W
    • Class: B
    • Power Supply: 48Vdc at 5.0 amps maximum

    Integrated Design Highlights:

    • Specifically crafted for FM radio transmitters with broadband matching and the renowned BLF177 MOSFET transistor.
    • Compact dimensions (2.25 x 4.50 inches) for seamless integration into your transmitter system.
    • No bias adjustments or RF circuit tuning required, ensuring hassle-free installation and operation.

    Technical Resources for Seamless Integration:

    • Download DXF files for baseplate, RF, and power drawings to facilitate precise mechanical integration.
    • Access the detailed pallet datasheet in PDF format, providing comprehensive technical insights.
    • Explore RF Output vs. RF Input, DC current & efficiency charts for fine-tuning and optimization.

    Efficient Power Delivery for Improved SEO Ranking:

    • Operates efficiently within the Class B category, contributing to enhanced SEO performance.
    • Requires 48Vdc at a maximum of 5.0 amps, striking a balance between power and performance.

    Seamless Integration into Transmitter Systems for Top SEO Results:

    • Strategically designed as a pivotal component for FM transmitter systems.
    • Ideal for broadcasters aiming for high-performance amplification without the complexities of bias adjustments or tuning.

    Elevate your FM broadcasting system with the P155FM17 Power Amplifier Module from Broadcast Concepts.

    Related Products

    MagicSoft Recorder

    ,
    Original price was: $ 616.12.Current price is: $ 586.79.
    Select options
    Ingest Application for Broadcast and Post-production MagicSoft Recorder is particularly useful for multicam ingest and conformance recording because it supports up to 8 video inputs and each input supports 2 simultaneous recordings.

    Tieline Report-IT

    , , , , ,
    Original price was: $ 293.39.Current price is: $ 275.79.
    Select options
    The Tieline Report-IT turns your iPhone or Android smartphone into a pocket-sized portable 15kHz live IP audio codec.
    The D&R AIRMATE-12 USB Broadcast mixer is a highly versatile and exceptional-quality radio production mixer designed to cater to the needs of radio production DJs.

    D&R AIRMATE-12

    , , ,
    Original price was: $ 3,051.28.Current price is: $ 2,904.59.
    Select options
    The D&R AIRMATE-12 USB Broadcast mixer is a highly versatile and exceptional-quality radio production mixer designed to cater to the needs of radio production DJs.
    -9%

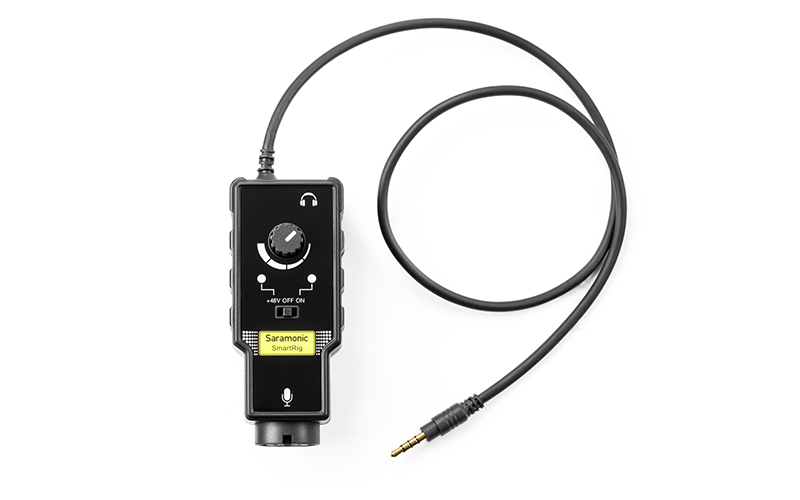

    The D&R SMARTRIG-2 XLR Audio Adapter is an easy solution to connect any professional microphone to an iPhone, iPod touch, or iPad and Android devices
