    SUONO ESVA500

    Original price was: $ 3,419.00.Current price is: $ 2,534.78.

    SKU: 109585 Brand: SUONO
    ESVA500
    Original price was: $ 3,419.00.Current price is: $ 2,534.78.
    RDS Encoder option
    $ 165.06

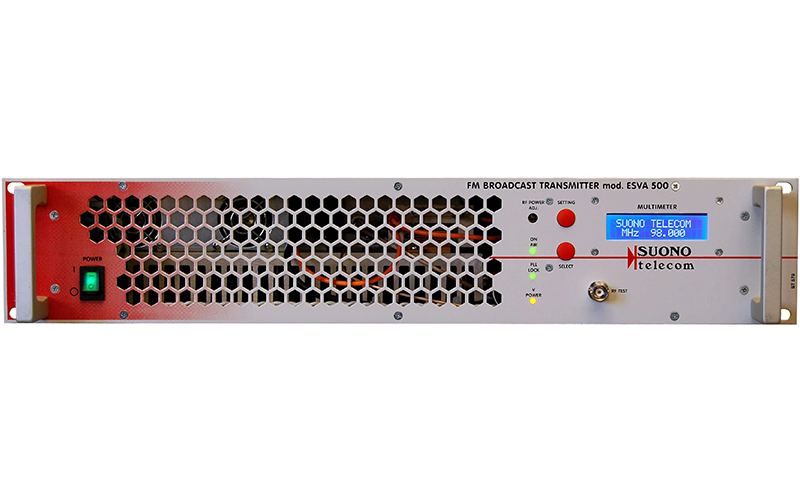

    SUONO ESVA500

    The SUONO ESVA500 is a 500W FM Transmitter (Mono/MPX), which is made with the most modern technology available to deliver maximum performance at minimum cost.



    Technical Facts:

    • FREQUENCY RANGE: 87.5÷108MHz (76÷88MHz on request)
    • MODULATION: FM
    • EMISSION CLASS: F3E
    • VCO TUNING: 25MHz
    • FREQUENCY STABILITY: ± 2.5 ppm
    • SYNTHESIZER STEP:10KHz
    • POWER OUTPUT: 0 ÷ 525 Watts
    • SPURIOUS EMISSION: < – 80 dB or better
    • HARMONIC EMISSION: <-70 dB
    • STEREO SEPARATION: >55dB @ 1KHz
    • DISTORTION:< 0.1 % (Typ. 0.06%) @ 1KHz
    • BASE BAND: 30 Hz ÷ 60 kHz within 0.15 dB
    • UNWEIGHTED S/N RATIO:>80 dB (30Hz ÷ 15KHz, 50 μs RMS)
    • ASYNCHRONOUS AM S/N Ratio: > 70 dB, Ref. 100% AM 400Hz
    • SYNCHRONOUS AM S/N Ratio: > 65 dB with FM @ 75KHz @400Hz
    • PRE-EMPHASIS: 50 OR 75 μS Internally selectable
    • RF OUT CONNECTOR: NF 50 Ohm
    • MPX INPUT CONNECTOR: BNC-F
    • MPX INPUT IMPEDANCE: 2KOhm
    • SCA INPUT CONNECTOR: 3 BNC-F
    • COOLING: Forced air by two brushless fans
    • OP.TEMPERATURE RANGE:- 10 ÷ +45 °C
    • MAXIMUM HUMIDITY: 90 %
    • AC SUPPLY: 100 ÷ 240 VAC – 47 ÷ 63 Hz
    • DIMENSION: 2 unit rack 19″, 405 mm depth
    • WEIGHT: 15 Kg
